PDR IR-E3 rework station for BGA/SMT applications
PDR Rework Systems United Kingdom
IR-E3 Simple Rework Station for all BGA/SMT Components
The PDR IR-E3 is a high-performance rework station engineered for BGA, SMT and advanced component repair.
Focused IR Technology
BGA QFN SMD
18” / 450mm PCB
Made in UK
Key Features
- • Advanced focused IR component heating delivers precise energy exactly where needed.
- • Quartz IR PCB preheating with up to 3 zones helps distribute heat evenly and reduces warping.
- • Precision pick and placement accuracy up to 10um supports demanding BGA/SMT rework tasks.
- • Closed-loop non-contact temperature sensing and automatic thermal process control improve repeatability.
- • Reflow process observation camera and PCB forced air cooling support controlled process verification and safer handling.
| Max PCB Size | 12” x 18” / 300 x 450mm |
| Top Heater Power | 150W Focused Infrared |
| PCB Preheater | Quartz IR, up to 3 zones |
| Placement Accuracy | Up to 10um |
| Viewing System | Split Beam prism system |
| Temperature Sensing | Closed-loop non-contact IR sensing |
| Component Handling | Precision pick and placement |
| Additional Functions | Component nest / flux application, process camera, forced air cooling |

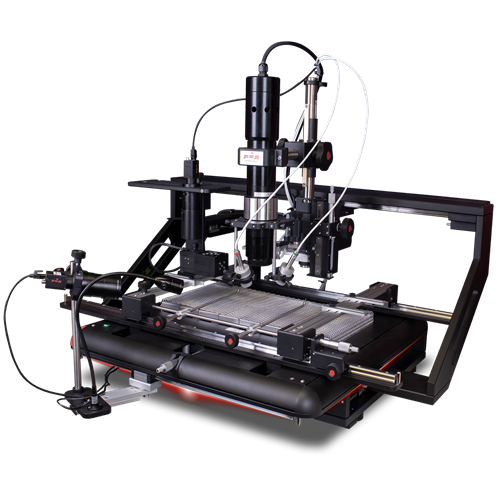

The IR-E6 is suited for organizations that repair, rework or refurbish electronics at scale — particularly where large PCBs, high-value assemblies, or tight placement tolerances are required. IR-E6 phù hợp cho các tổ chức sửa chữa, tái công hoặc tân trang điện tử ở quy mô lớn — đặc biệt khi cần xử lý PCB khổ lớn, cụm lắp ráp giá trị cao hoặc dung sai đặt linh kiện chặt chẽ.
🖥️
🛡️
📡
🏭
Electronics ManufacturingSản xuất điện tử
PCB assembly, repair & reworkLắp ráp, sửa chữa & tái công PCB
Defense & AerospaceQuốc phòng & Hàng không vũ trụ
High-reliability PCB reworkTái công PCB độ tin cậy cao
Telecom & NetworkingViễn thông & Mạng
Large server & switch board repairSửa chữa bo mạch server & switch lớn
Industrial ElectronicsĐiện tử công nghiệp
PLC, inverter, control board repairSửa PLC, biến tần, bo điều khiển
